Connolly Biscuit Plate Dowels and Sleeves (Pack of 10)

Description

Connolly Biscuit Plate Dowels and Sleeves

Connolly Biscuit Plate Dowels and Sleeves are designed to transfer loads across construction joints in slab-on-ground applications.

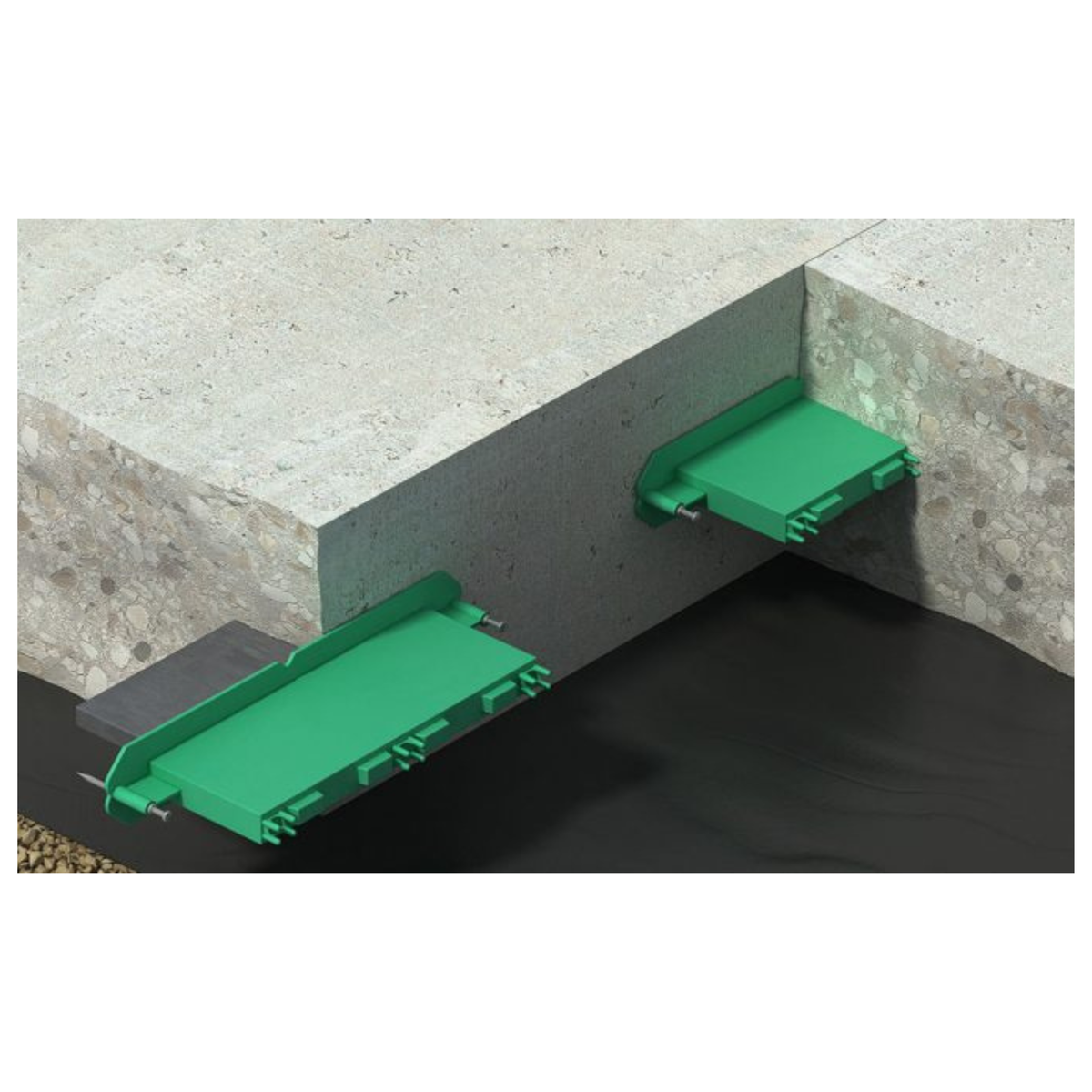

The plastic sleeve encases one half of the plate dowel to de-bond the dowel from the concrete, allowing for expansion, contraction and lateral movement at the joint.

Sold as a pack of 10 units.

Features

• Available in 6mm and 10mm Black or Hot-Dip Galvanised steel
• Minimises differential deflection between slabs
• Allows for contraction, expansion and lateral movement
• V-notches and pre-installed nails for easy installation
• Speeds up dowel installation
• Allows lateral and end expansion
• Can be fixed to timber and steel formwork
• Ideally suited for construction joints
• Colour-coded sleeves for easy identification
• Injection moulded polystyrene sleeves provide accuracy and stiffness
• 110mm x 150mm steel plate dimensions

Specifications

• Brand: Connolly
• Steel Plate Dimensions: 110mm x 150mm (Length x Width)
• Dowel Thicknesses: 6mm, 10mm
• Finishes: Black, Hot-Dip Galvanised
• Steel Grade: AS/NZS 3679.1-300
• Galvanising Standard: AS/NZS 4680:2006
• Sleeve Material: Injection-moulded polystyrene
• Connection: V-notches and pre-installed nails for timber and steel formwork
• Lateral Expansion: 10mm each side
• Pack Qty: 10 units

Available Sizes

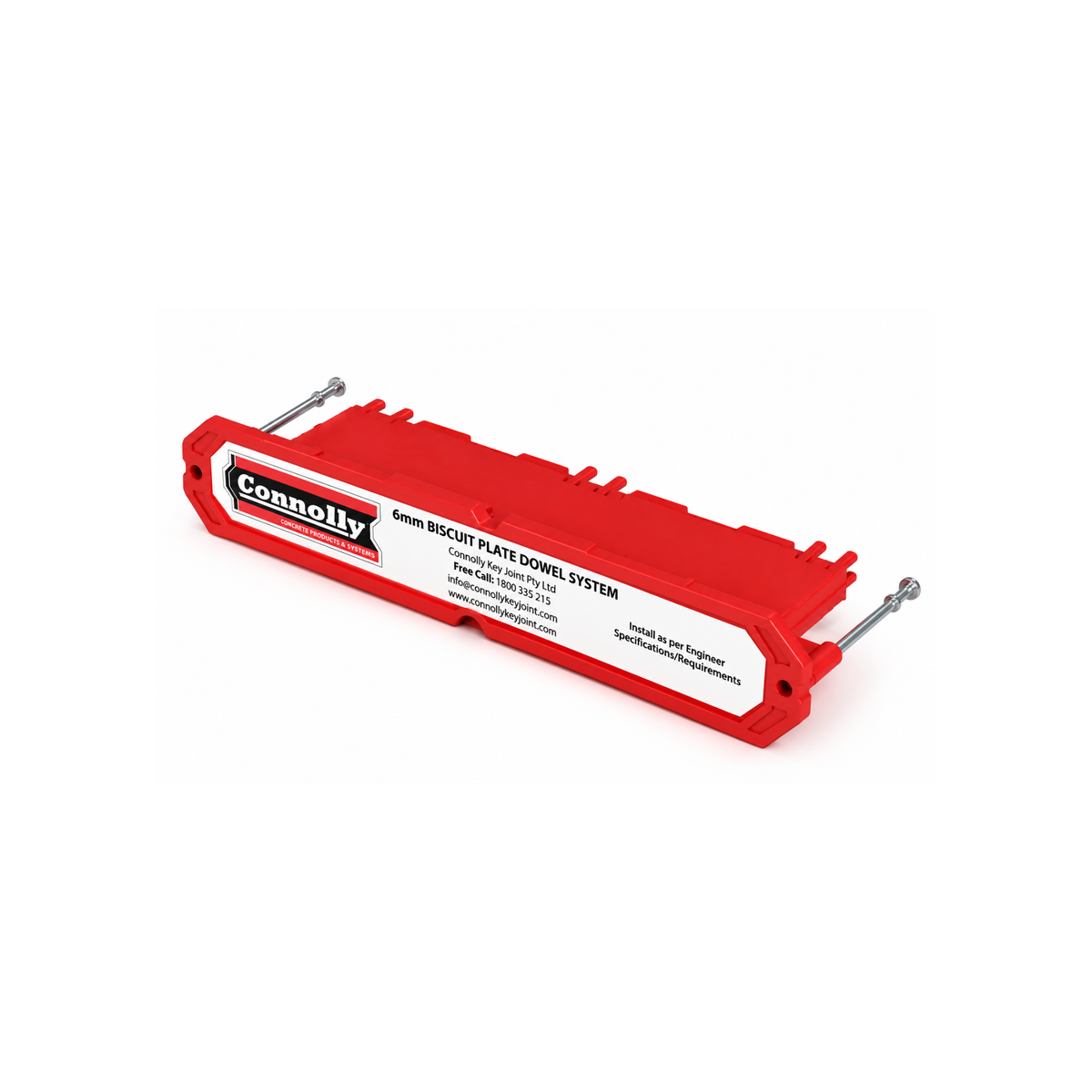

• 6mm Biscuit Plate Dowel: Red sleeve, 5mm end expansion, available in Black or Hot-Dip Galvanised

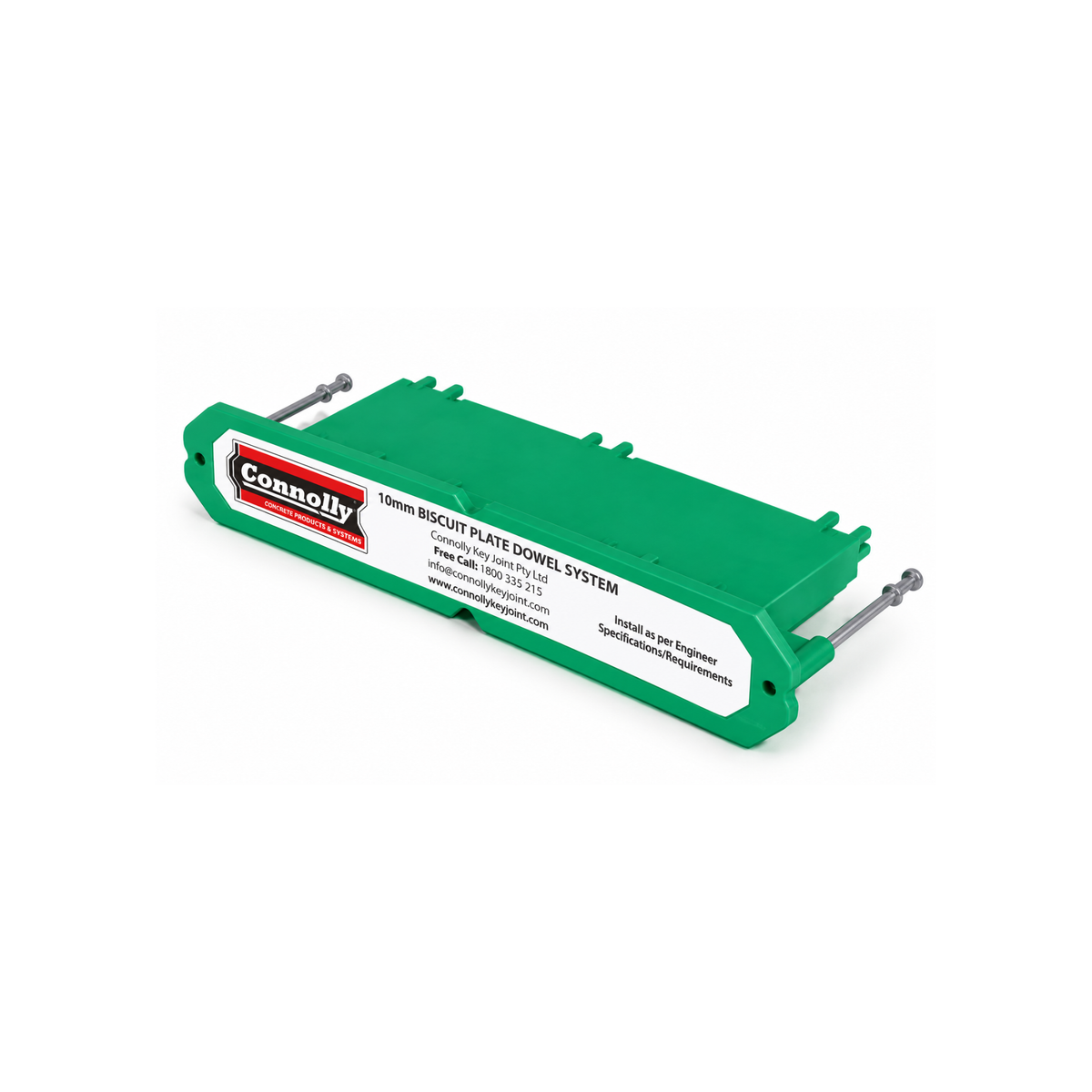

• 10mm Biscuit Plate Dowel: Green sleeve, 12mm end expansion, available in Black or Hot-Dip Galvanised

Applications

• Load transfer across construction joints in slab-on-ground applications
• Construction joints requiring expansion, contraction and lateral movement
• Structural concrete connections
• Commercial and industrial construction
• Projects using timber or steel formwork

Documentation

• Biscuit Plate Dowels Installation Guidance (PDF)
• Biscuit Plate Dowel Sleeve Specifications (PDF)
