Connolly Expansion Joint Cappings

Description

Connolly Expansion Joint Cappings

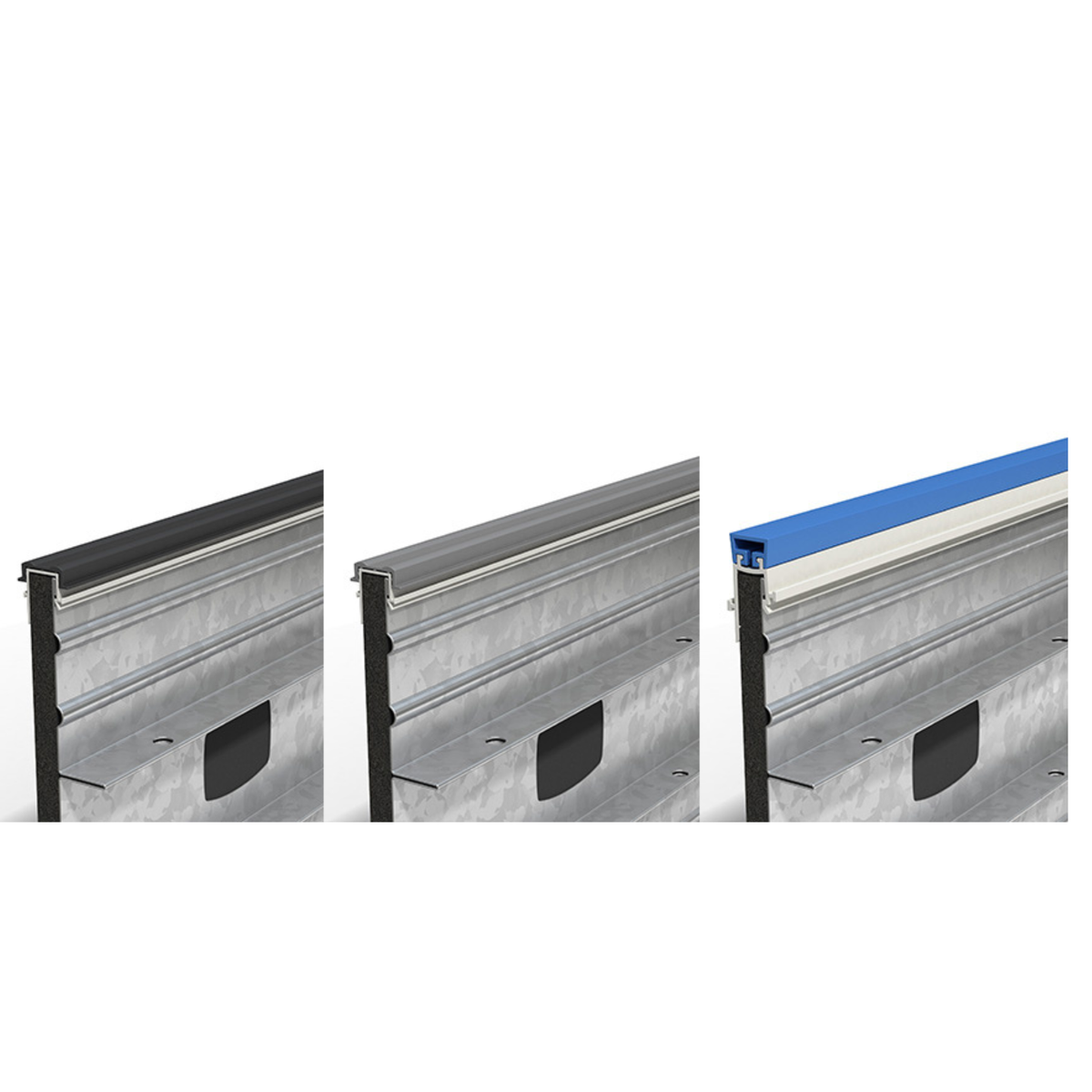

A range of permanent capping and rebate moulds for use with Connolly Expansion Joints are available to provide the desired finish for the joint.

Expansion Joint Permanent Capping:

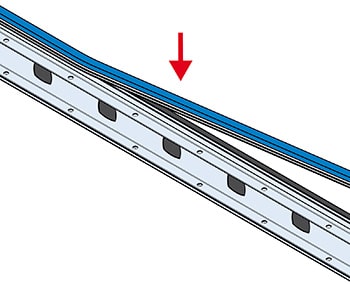

Permanent Capping for Connolly Expansion Joints consists of a white rigid plastic cap that clips on top of the profile and permanently protects the joint from material ingress. Above the rigid plastic is a soft PVC capping that maintains its flexibility and moves with the slab. The PVC capping is available in black and grey. All permanent caps are supplied in 3m lengths.

Available Options:

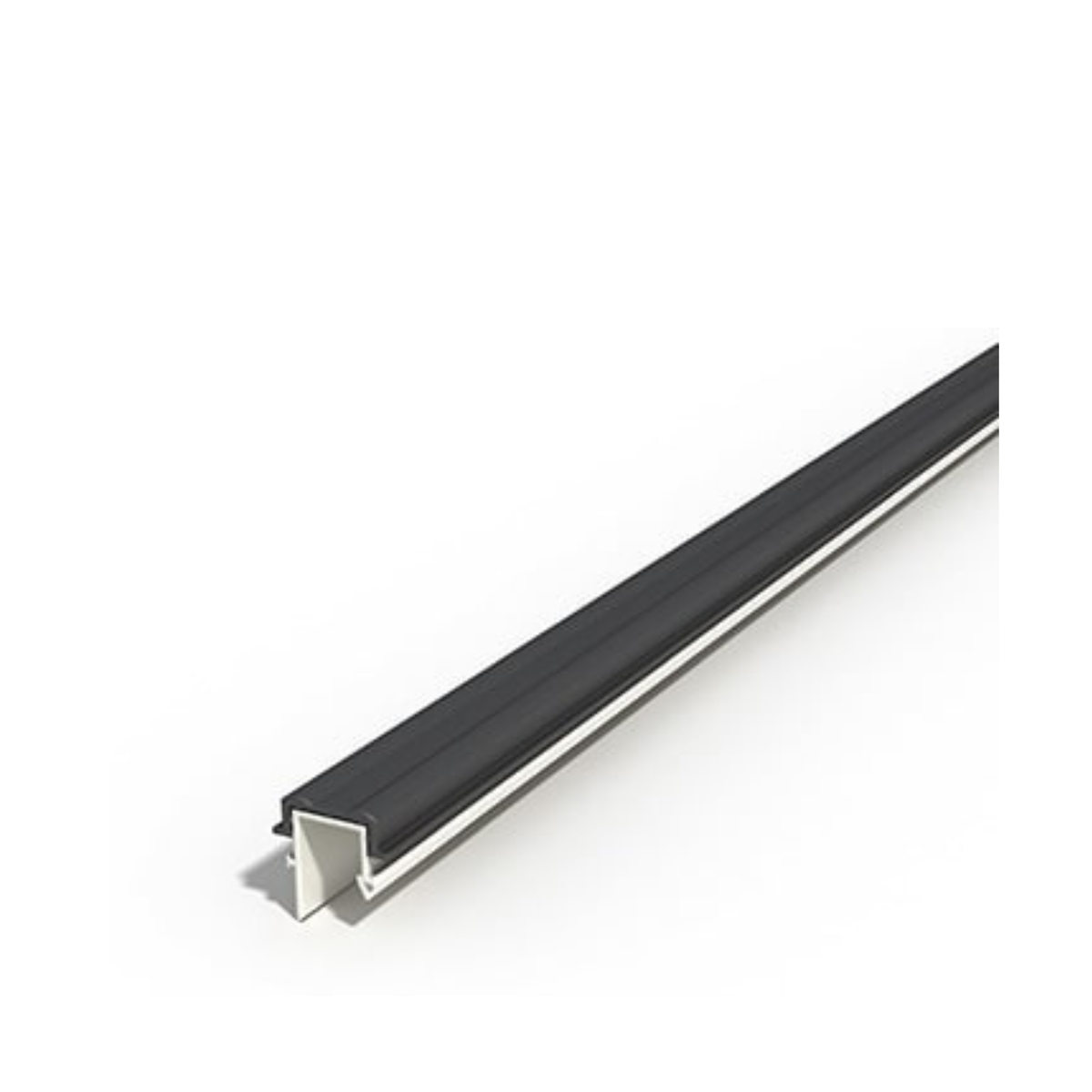

 EXJ-PERM-CAP-BLK-3M (Black)

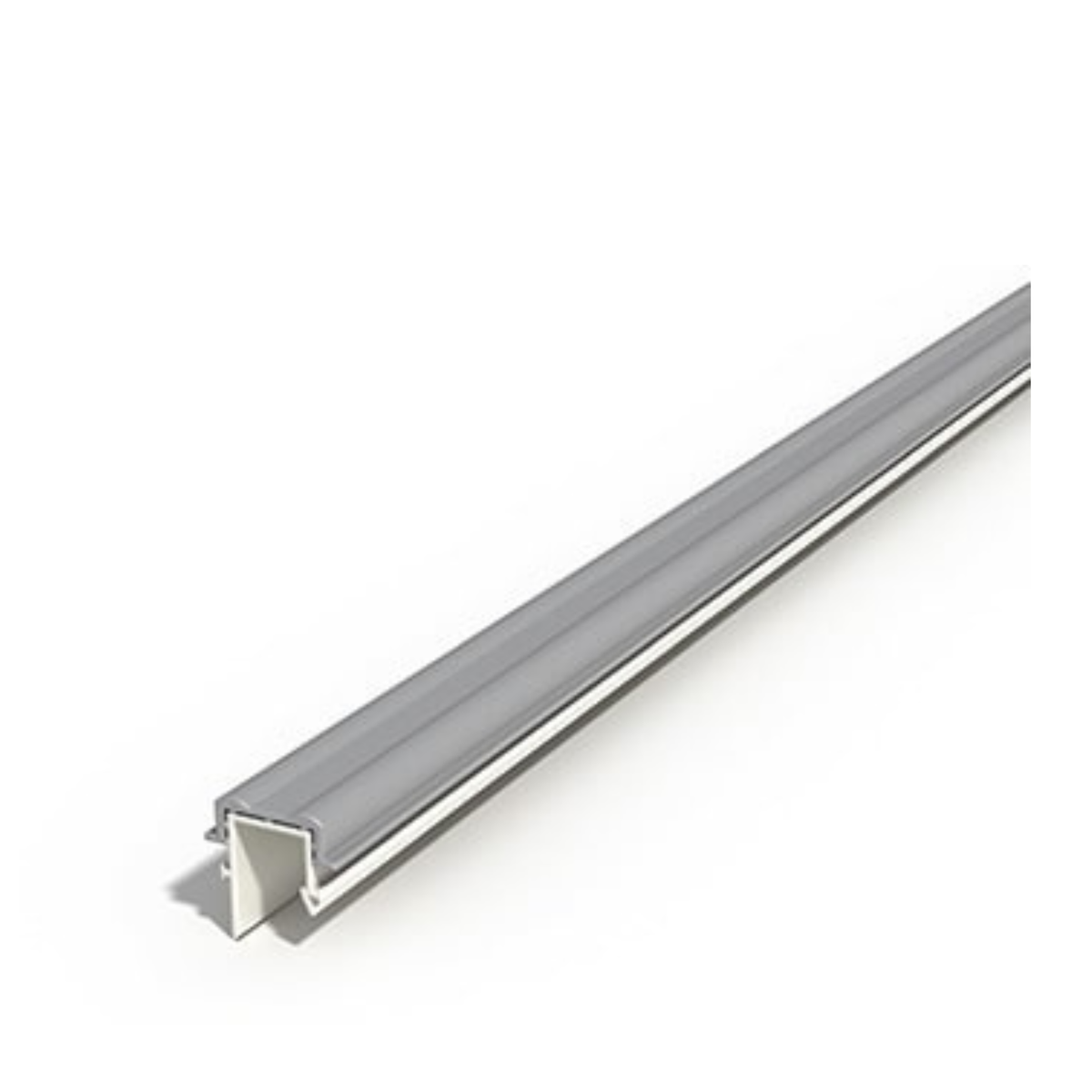

EXJ-PERM-CAP-GREY-3M (Grey)

Expansion Joint Rebate Mould:

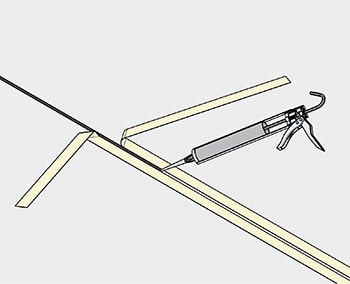

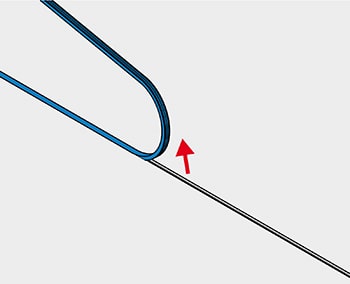

The Rebate Mould for Connolly Expansion Joints consists of a white rigid plastic cap that clips on top of the profile. A second plastic cap clips onto the white plastic and forms a rebate above the EXJ Expansion Joint during the pour. After removal of the top profile, a 16mm wide and 10mm high rebate is ready to be filled with flexible joint sealant. Rebate moulds are supplied in 3m lengths.

Available Options:

• Round Dowels: EXJRBM-16x10mm

Features:

• UV resistant PVC
• Protects the joint from ingress of foreign particles
• Resistant to oils and petroleum-based products
• Quickly and easily installed
• White rigid plastic cap clips on top of profile
• Soft PVC capping maintains flexibility and moves with the slab
• Available in black and grey for permanent capping
• All supplied in 3m lengths
• Rebate mould creates 16mm wide x 10mm high rebate for joint sealant

Specifications:

• Brand: Connolly
• Material: UV resistant PVC with white rigid plastic cap
• Length: 3m
• Permanent Capping Colours: Black (Round Dowels), Grey (Square Dowels)
• Rebate Mould Dimensions: 16mm wide x 10mm high
• Installation: Clips on top of profile
• Compatibility: For use with Connolly Expansion Joints

Applications:

• Permanent protection for Connolly Expansion Joints
• Creating rebates for flexible joint sealant
• Industrial and warehouse slabs
• Commercial concrete slabs
• Construction projects requiring joint finishing
• Applications requiring protection from material ingress
• Exposed or corrosive environments

Benefits:

• UV resistant PVC provides long-lasting performance
• Protects the joint from ingress of foreign particles
• Resistant to oils and petroleum-based products for durability
• Quickly and easily installed with clip-on design
• White rigid plastic cap permanently protects the joint from material ingress
• Soft PVC capping maintains flexibility and moves with the slab
• Available in black and grey to match different aesthetics
• 3m lengths for convenient installation
• Rebate mould creates perfect 16mm x 10mm rebate ready for flexible joint sealant
• Compatible with Connolly Expansion Joints for complete system solution

Professional concrete contractors choose Connolly Expansion Joint Cappings to provide the desired finish for joints. Permanent Capping consists of a white rigid plastic cap that clips on top of the profile and permanently protects the joint from material ingress, with a soft PVC capping above that maintains its flexibility and moves with the slab. Available in black (for round dowels - EXJ-PERM-CAP-BLK-3M) and grey (for square dowels - EXJ-PERM-CAP-GREY-3M) in 3m lengths. The Rebate Mould (EXJRBM-16x10mm) consists of a white rigid plastic cap that clips on top of the profile, with a second plastic cap that forms a 16mm wide x 10mm high rebate above the EXJ Expansion Joint during the pour. After removal of the top profile, the rebate is ready to be filled with flexible joint sealant. Features UV resistant PVC, protects from ingress of foreign particles, resistant to oils and petroleum-based products, and is quickly and easily installed.
