Connolly Expansion Joint Complete System

Description

Connolly Expansion Joint Complete System

The Connolly Expansion Joint Complete System is a continuous pour solution for expansion joints in slab on ground applications.

The straight profile guarantees that the load is transferred through the dowels only.

Connolly Expansion Joints are a roll-formed galvanised steel section with 10mm cross-linked foam to provide a leave in place formwork that allows for joint expansion. The profile is fixed in place using the patented peg and wedge system.

The Expansion Joint profile has pre-formed holes which allow it to be used in conjunction with Connolly Universal Dowel Sleeves (UDS). The Universal Dowel Sleeves are installed in the steel section using the patented twist-fix feature.

Available in 3m lengths for slab thicknesses from 100mm to 200mm. Custom heights, lengths (up to 3m), and dowel configurations are available on request.

A wide range of permanent capping and rebate moulds are available to be used with Connolly Expansion Joints.

Documentation:

• Installation Guide (PDF)
• Expansion Joint System Specifications (PDF)

System Contents:

100mm System (EXJ10030):

• 1 x 100mm x 3.0m Expansion Joint
• 9 x R12 x 300mm galvanised Dowel Bars

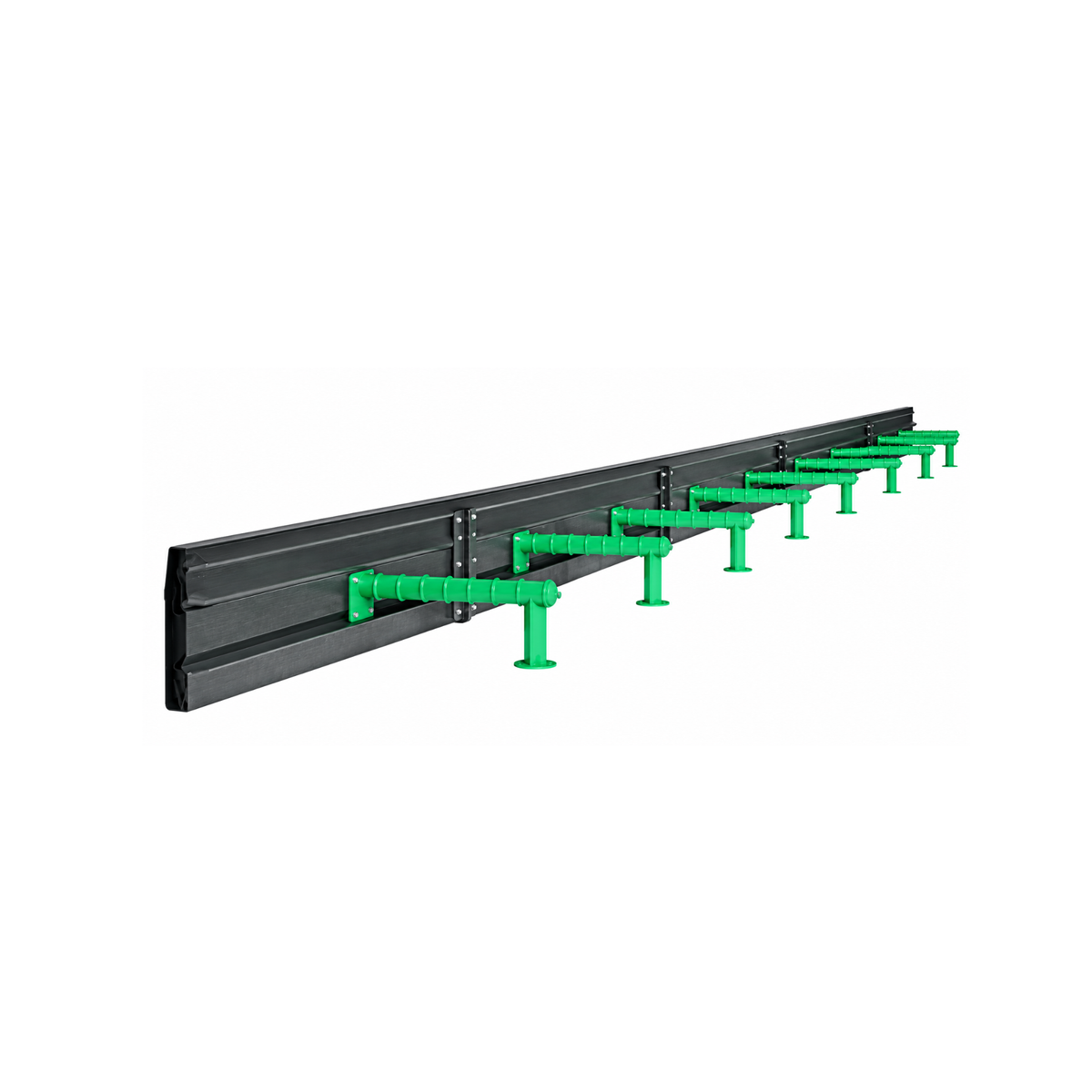

• 9 x 12mm x 150mm Green Dowel Sleeves
• 1 x Pack of 4 pegs and wedges

Note: The 100mm joint is unique in that it will only accept the 12mm sleeves, the standard universal dowel sleeves will not lock into this joint.

125mm System (EXJ12530):

• 1 x 125mm x 3.0m Expansion Joint
• 7 x R16 x 450mm galvanised Dowel Bars

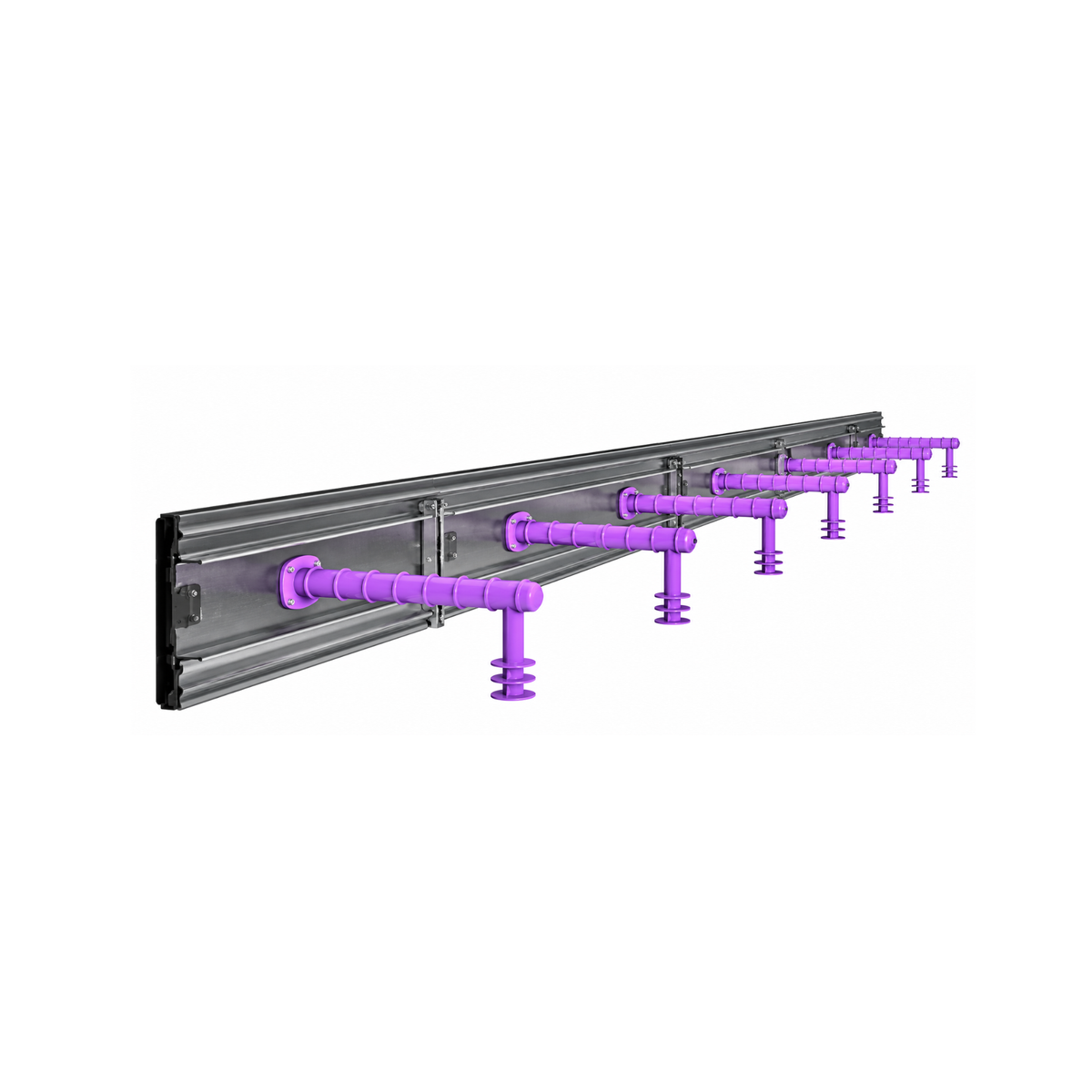

• 7 x 16mm x 225mm Purple Dowel Sleeves
• 1 x Pack of 4 pegs and wedges

Note: The dowels and sleeves can be changed out to suit any of the Connolly universal dowel sleeves 16, 20 & 24mm in both square and round sleeves.

150mm System (EXJ15030):

• 1 x 150mm x 3.0m Expansion Joint
• 7 x R16 x 450mm galvanised Dowel Bars
• 7 x 16mm x 225mm Purple Dowel Sleeves
• 1 x Pack of 4 pegs and wedges

Note: The dowels and sleeves can be changed out to suit any of the Connolly universal dowel sleeves 16, 20 & 24mm in both square and round sleeves.

200mm System (EXJ20030):

• 1 x 200mm x 3.0m Expansion Joint
• 7 x R24 x 450mm galvanised Dowel Bars

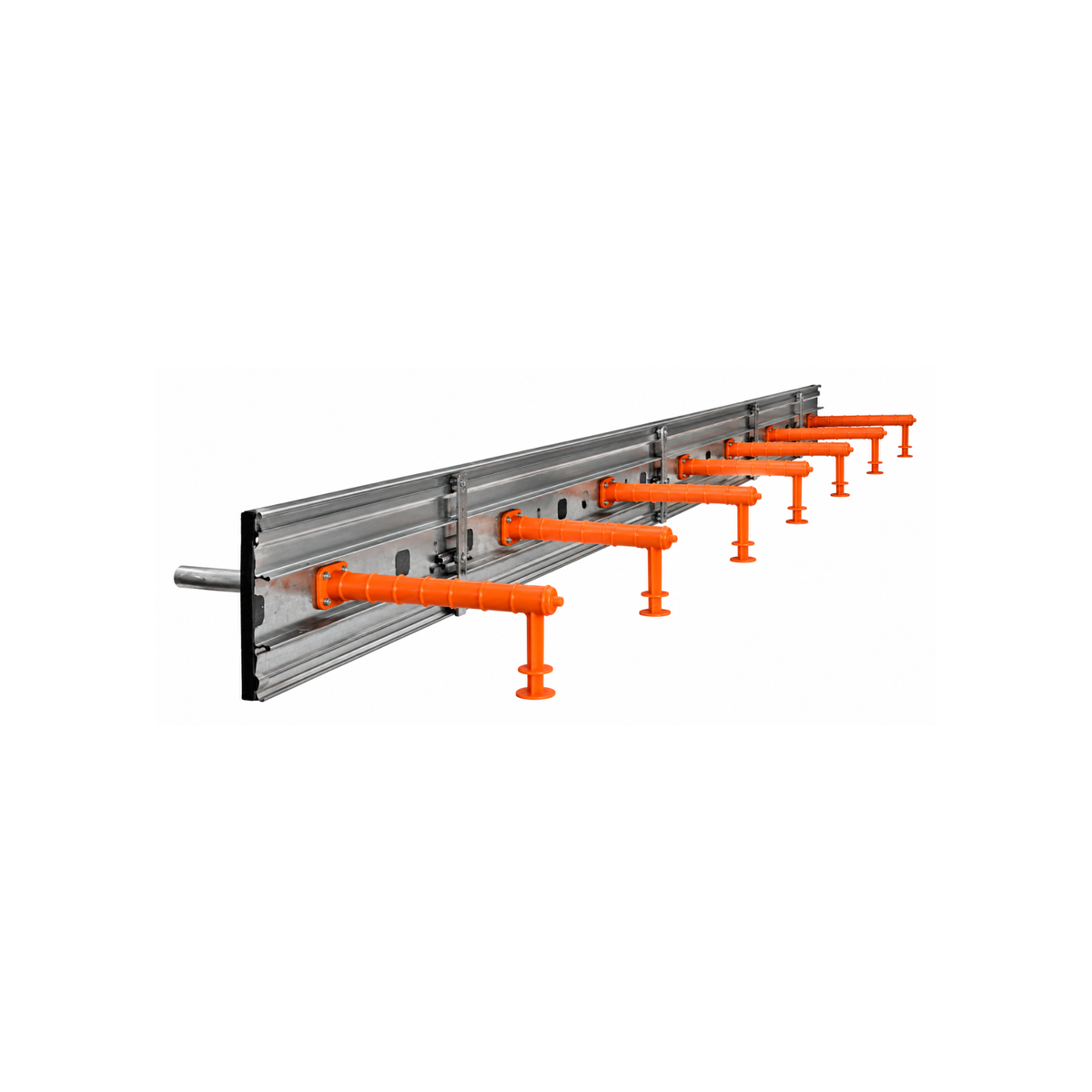

• 7 x 24mm x 225mm Orange Dowel Sleeves
• 1 x Pack of 4 pegs and wedges

Note: The dowels and sleeves can be changed out to suit any of the Connolly universal dowel sleeves 16, 20 & 24mm in both square and round sleeves.

Features:

• Enables continuous pours
• Allows up to 10mm expansion
• 4 different profile heights available
• Provides expansion capacity over the full depth of the slab
• Twist-fix feature provides alignment of dowels for unhindered slab movement
• Patented wedge fixing mechanism allows fast and accurate height adjustment
• Additional stiffening ribs to ensure straighter joints
• Galvanised coating for corrosion protection
• Can be used to screed off which makes getting the right level quick and easy
• Permanent capping and rebate mould available
• Available in 3m lengths
• Suitable for slab thicknesses from 100mm to 200mm

Specifications:

• Brand: Connolly
• Material: Roll-formed galvanised steel with 10mm cross-linked foam
• Available Lengths: 3m (custom lengths up to 3m available on request)
• Slab Thickness Range: 100mm to 200mm
• Profile Heights: 4 different heights available (87.5mm, 123mm, 142mm, 190mm)
• Expansion Capacity: Up to 10mm
• Fixing System: Patented peg and wedge system
• Coating: Galvanised for corrosion protection
• Available in 4 complete system configurations

Applications:

• Expansion joints in slab on ground applications
• Leave-in-place formwork that allows for joint expansion
• Continuous pour solutions
• Use with Connolly Universal Dowel Sleeves for load transfer
• Commercial and industrial concrete slabs
• Construction projects

Benefits:

• Complete system includes all components for professional installation
• Enables continuous pours for efficient construction
• Allows up to 10mm expansion over full depth of slab
• Straight profile guarantees load is transferred through dowels only
• 10mm cross-linked foam provides expansion capacity
• Twist-fix feature provides alignment of dowels for unhindered slab movement
• Patented wedge fixing mechanism allows fast and accurate height adjustment
• Additional stiffening ribs ensure straighter joints
• Galvanised coating provides corrosion protection
• Can be used to screed off for quick and easy leveling
• Pre-formed holes accommodate various dowel sizes
• Compatible with Connolly Universal Dowel Sleeves using patented twist-fix feature
• Wide range of permanent capping and rebate moulds available
• Custom heights, lengths, and dowel configurations available on request

Professional concrete contractors choose Connolly Expansion Joint Complete Systems as a continuous pour solution for expansion joints in slab on ground applications. The straight profile guarantees that the load is transferred through the dowels only. These roll-formed galvanised steel sections with 10mm cross-linked foam provide leave-in-place formwork that allows for joint expansion, with the profile fixed in place using the patented peg and wedge system. Available in 4 complete system configurations for slab thicknesses from 100mm to 200mm, each system includes the appropriate expansion joint, galvanised dowel bars, colour-coded dowel sleeves, and pack of 4 pegs and wedges for optimal performance. Custom heights, lengths (up to 3m), and dowel configurations are available on request.
