Connolly Key Joint

Description

Connolly Key Joint

Connolly Key Joints are a continuous pour solution for contraction joints in slab on ground applications.

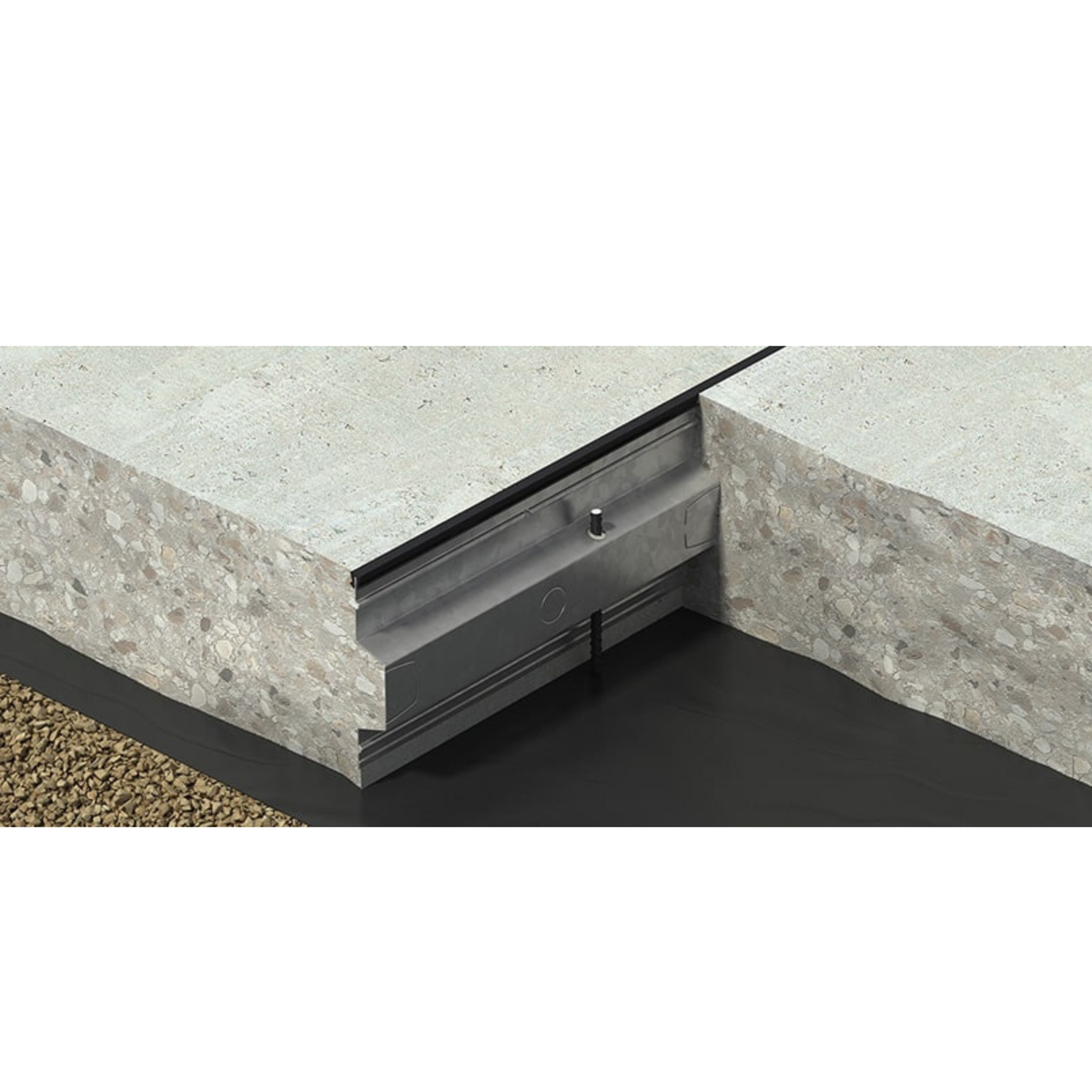

Connolly Key Joints are a roll-formed galvanised steel section used as a leave-in-place formwork to control shrinkage induced cracking. The profile is fixed in place using the patented peg and wedge system.

Our unique tongue profile provides positive load transfer with minimal stepping. For higher load applications the preformed knock-outs allow Key Joints to be used in conjunction with Connolly Universal Dowel Sleeves (UDS). The Universal Dowel Sleeves are installed in the steel section using the patented twist-fix feature.

Key Joints are available in 3 and 6m lengths for slab thicknesses from 100mm to 300mm. Custom heights and lengths are available on request.

A wide range of permanent and removable capping, and rebate moulds are available to be used with Connolly Key Joints.

Features:

• Enables continuous pours
• 4 different profile heights
• Knockouts to accommodate a range of dowel sizes
• Patented wedge fixing mechanism allows fast and accurate height adjustment
• Additional stiffening ribs to ensure straighter joints
• Galvanised coating for corrosion protection
• Can be used to screed off which makes getting the right level quick and easy
• A range of capping for various applications
• Minimise liability risks from slip and trip claims
• Available in 3 and 6m lengths
• Suitable for slab thicknesses from 100mm to 300mm

Specifications:

• Brand: Connolly
• Material: Roll-formed galvanised steel
• Available Lengths: 3m and 6m (custom lengths available on request)
• Slab Thickness Range: 100mm to 300mm
• Profile Heights: 4 different heights available
• Fixing System: Patented peg and wedge system
• Coating: Galvanised for corrosion protection

Applications:

• Contraction joints in slab on ground applications
• Leave-in-place formwork to control shrinkage induced cracking
• Continuous pour solutions
• Higher load applications with Universal Dowel Sleeves
• Commercial and industrial concrete slabs
• Construction projects

Benefits:

• Enables continuous pours for efficient construction
• Unique tongue profile provides positive load transfer with minimal stepping
• Patented wedge fixing mechanism allows fast and accurate height adjustment
• Additional stiffening ribs ensure straighter joints
• Galvanised coating provides corrosion protection
• Can be used to screed off for quick and easy leveling
• Knockouts accommodate range of dowel sizes for versatility
• Compatible with Connolly Universal Dowel Sleeves for higher load applications
• Wide range of capping and rebate moulds available
• Minimise liability risks from slip and trip claims
• Custom heights and lengths available on request

Professional concrete contractors choose Connolly Key Joints as a continuous pour solution for contraction joints in slab on ground applications. These roll-formed galvanised steel sections are used as leave-in-place formwork to control shrinkage induced cracking, with the profile fixed in place using the patented peg and wedge system. The unique tongue profile provides positive load transfer with minimal stepping, and for higher load applications, the preformed knock-outs allow Key Joints to be used in conjunction with Connolly Universal Dowel Sleeves (UDS) installed using the patented twist-fix feature. Available in 3 and 6m lengths for slab thicknesses from 100mm to 300mm, with custom heights and lengths available on request.

Downloads:

• Installation Guide (PDF)
• Technical Datasheet (PDF)
