Connolly Universal Dowel Sleeves for Round Dowels

Description

Connolly Universal Dowel Sleeves for Round Dowels

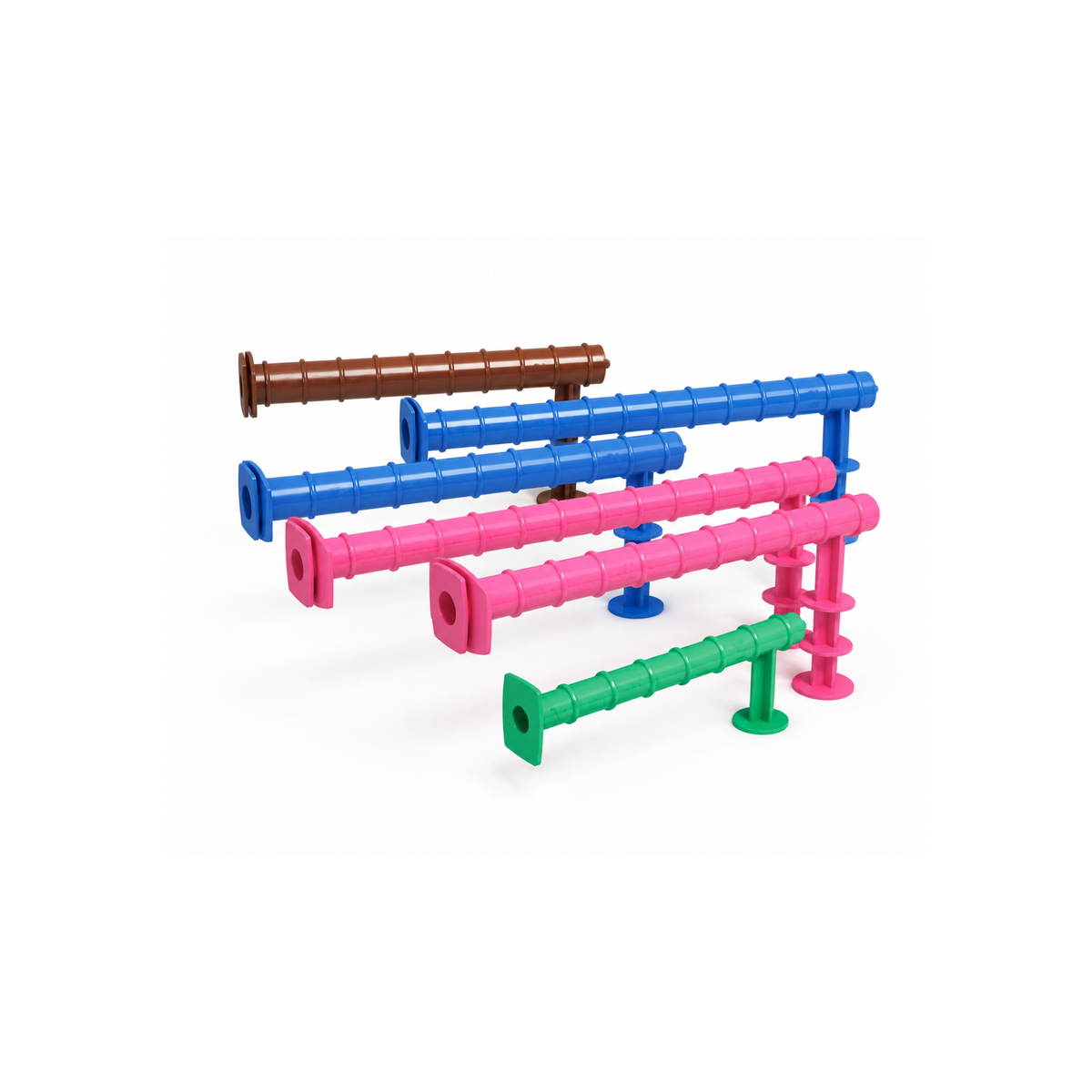

Connolly Universal Dowel Sleeves (UDS) for round dowels are designed to be used in conjunction with Connolly Expansion Joints and Contraction Joints. The Universal Dowel Sleeves are installed in the steel section using the patented Connolly twist-fix feature.

These colour-coded dowel sleeves provide easy identification and are engineered to allow for joint expansion while maintaining load transfer through the dowels.

Features:

• Patented Connolly twist-fix feature for easy installation
• Colour-coded for easy identification
• Integrated foot to suit various slab thicknesses (select sizes)
• 10mm end expansion capacity
• Available in 6 different dowel sizes
• Multiple sleeve lengths available for most sizes
• Compatible with Connolly Expansion Joints and Contraction Joints

Specifications:

• Brand: Connolly
• Dowel Sizes Available: 12mm, 16mm, 20mm, 24mm, 33mm, 36mm
• Sleeve Lengths: 150mm to 300mm (varies by size)
• Recommended Dowel Lengths: 300mm to 600mm (varies by size)
• End Expansion: 10mm
• Lateral Movement: No
• Colour-Coded: Green (12mm), Pink (16mm), Blue (20mm), Brown (24mm), White (33mm & 36mm)

Available Sizes:

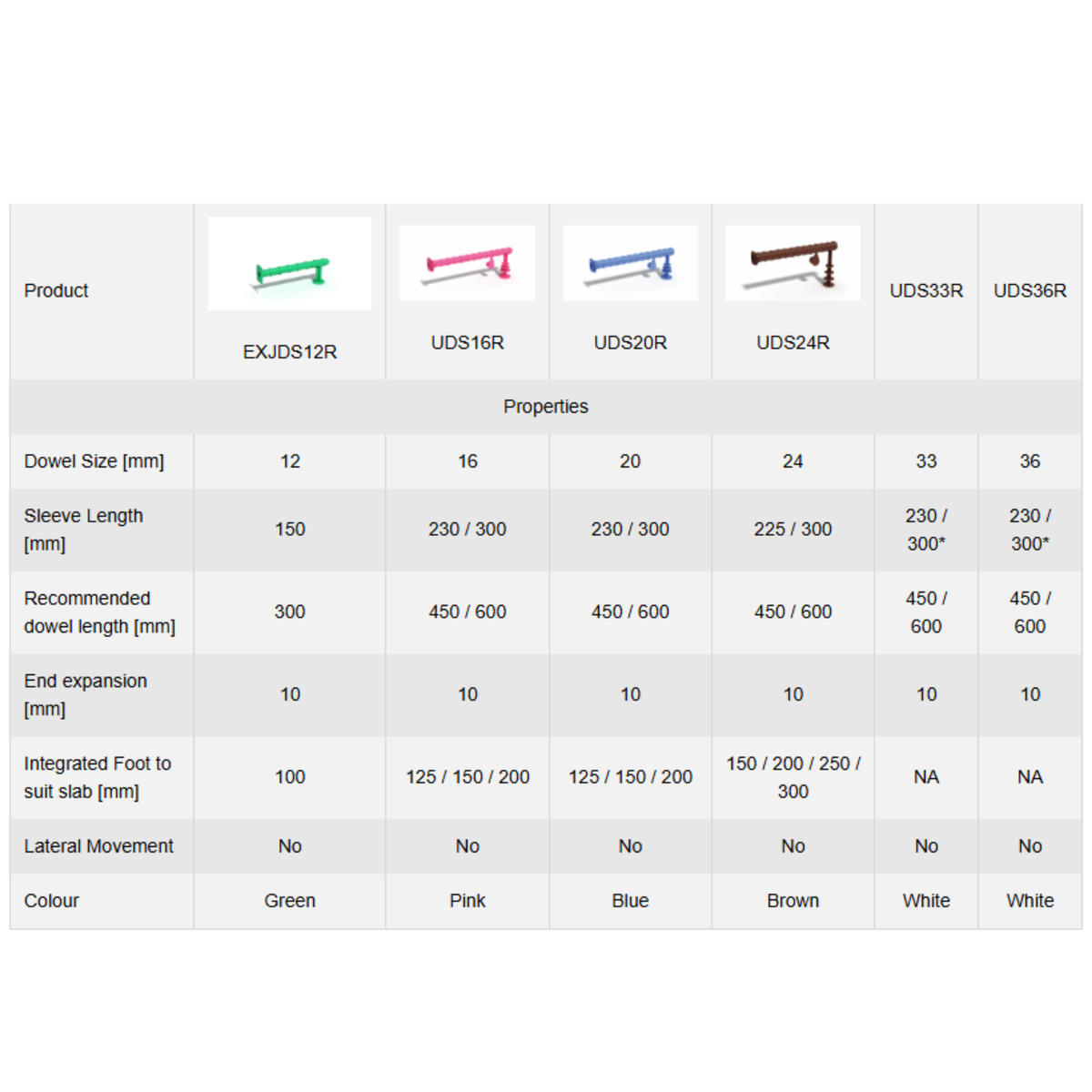

• EXJDS12R: 12mm dowel, 150mm sleeve length, 300mm recommended dowel length, Green, Integrated foot for 100mm slab
• UDS16R: 16mm dowel, 230/300mm sleeve lengths, 450/600mm recommended dowel lengths, Pink, Integrated foot for 125/150/200mm slabs
• UDS20R: 20mm dowel, 230/300mm sleeve lengths, 450/600mm recommended dowel lengths, Blue, Integrated foot for 125/150/200mm slabs
• UDS24R: 24mm dowel, 225/300mm sleeve lengths, 450/600mm recommended dowel lengths, Brown, Integrated foot for 150/200/250/300mm slabs
• UDS33R: 33mm dowel, 230/300mm sleeve lengths, 450/600mm recommended dowel lengths, White, No integrated foot
• UDS36R: 36mm dowel, 230/300mm sleeve lengths, 450/600mm recommended dowel lengths, White, No integrated foot

Applications:

• Use with Connolly Expansion Joints
• Use with Connolly Contraction Joints
• Load transfer in expansion and contraction joints
• Commercial and industrial concrete slabs
• Construction projects

Benefits:

• Patented twist-fix feature provides easy installation in steel sections
• Colour-coded system allows for quick identification of dowel sizes
• 10mm end expansion capacity accommodates joint movement
• Integrated foot (select sizes) suits various slab thicknesses
• Multiple sleeve lengths available for flexibility
• Compatible with Connolly joint systems for complete solution
• Engineered for reliable load transfer
• Professional-grade quality for demanding applications

Professional concrete contractors choose Connolly Universal Dowel Sleeves for Round Dowels to be used in conjunction with Connolly Expansion Joints and Contraction Joints. These colour-coded dowel sleeves are installed in the steel section using the patented Connolly twist-fix feature and provide 10mm end expansion capacity. Available in 6 different dowel sizes from 12mm to 36mm, with multiple sleeve lengths and integrated feet (select sizes) to suit various slab thicknesses. The colour-coded system (Green, Pink, Blue, Brown, White) allows for quick identification on the job site.
