Deckply F17 Formply 2400 x 1200mm

Description

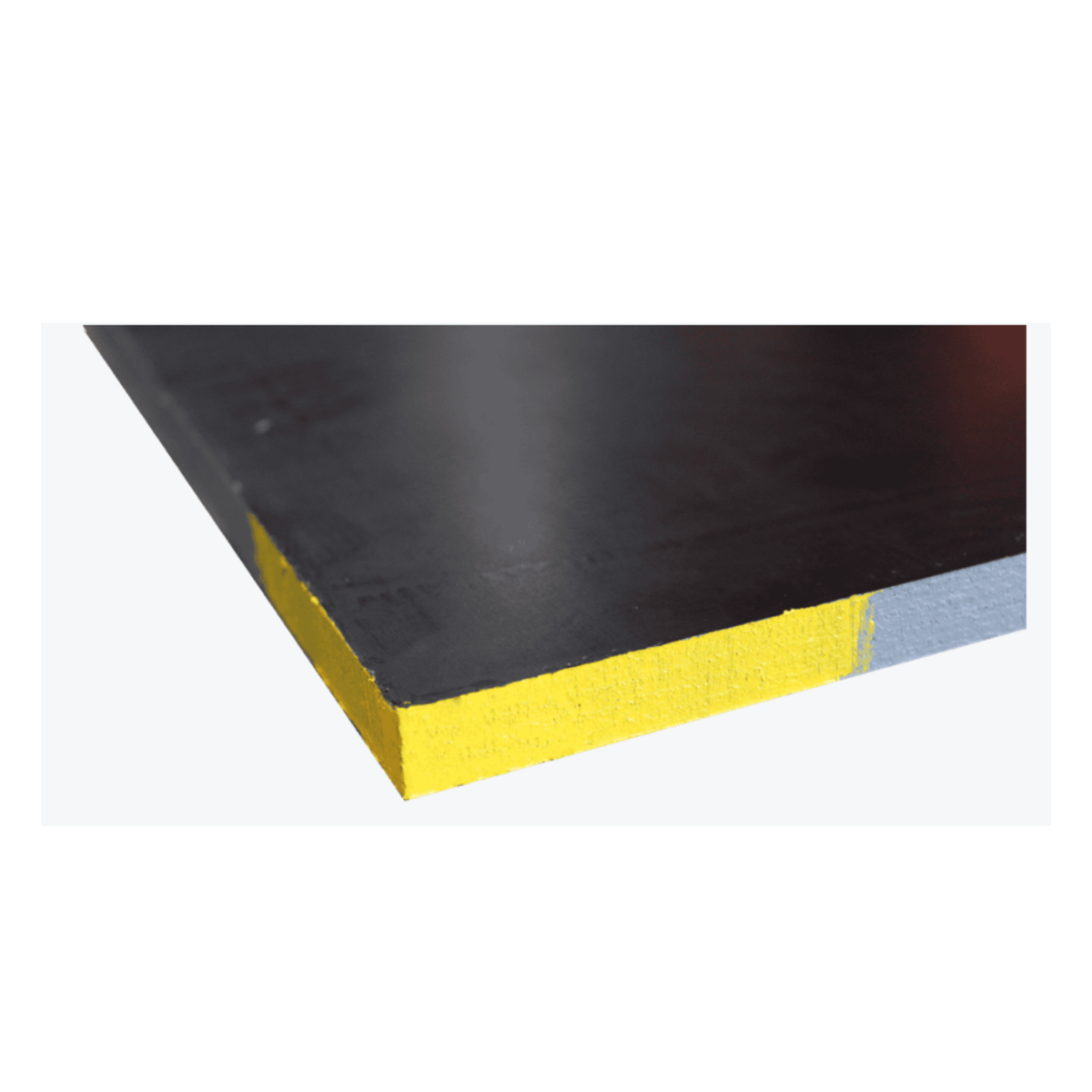

Deckply F17 Formply – 2400 x 1200mm

Deckply is a high-quality plywood panel developed and engineered predominantly from graded eucalyptus veneers, manufactured to the Australian Formwork Plywood Standard AS 6669 and compliant with AS/NZS 2269 – Structural Plywood.

Glued with phenol formaldehyde resin and overlaid with a hard, durable, waterproof resin-impregnated paper to give concrete a smooth finish. The glue is Marine A-BOND, E0. Deckply can withstand the rigours of construction moisture and provide a significant number of re-uses.

Technical Specifications

• Adhesive: Phenolic resin
• Bond: Type A (Marine) AS/NZS 2098 and AS 2754
• Edge Seal: 3 layers acrylic latex paint, water based
• Stress Grade: F17 – applies in both directions parallel and perpendicular to face grain
• Sheet Size: 2400 x 1200mm
• Thickness: 17mm (±3%)
• Weight: 22.5kg (1800 x 1200 x 17mm sheet)
• Length/Width Tolerance: ±1mm
• Squareness: ±2mm

Features & Benefits

• Achieve a Class 2 off-form finish on the first pour (as per Deckply installation details and AS 3610)
• Lightweight – 22.5kg per sheet
• Reusable – can be reused numerous times with good site practices
• Flexible – easily shaped for custom applications; suits steel or timber form frame systems
• F17 stress grade in both face grain directions
• Marine A-BOND phenolic adhesive with lowest formaldehyde emissions: E0
• Edges coated with weather shield acrylic latex undercoat plus top coat water repellent sealant
• Precise squareness and straightness
