Reinforcement Trench Mesh
$40.00 Ex GST
$40.00 Ex GST
/
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
Get in touch for a delivery quote on heavy or large items. Please note: stock availability may vary. We will contact you to confirm availability before pickup.
Description

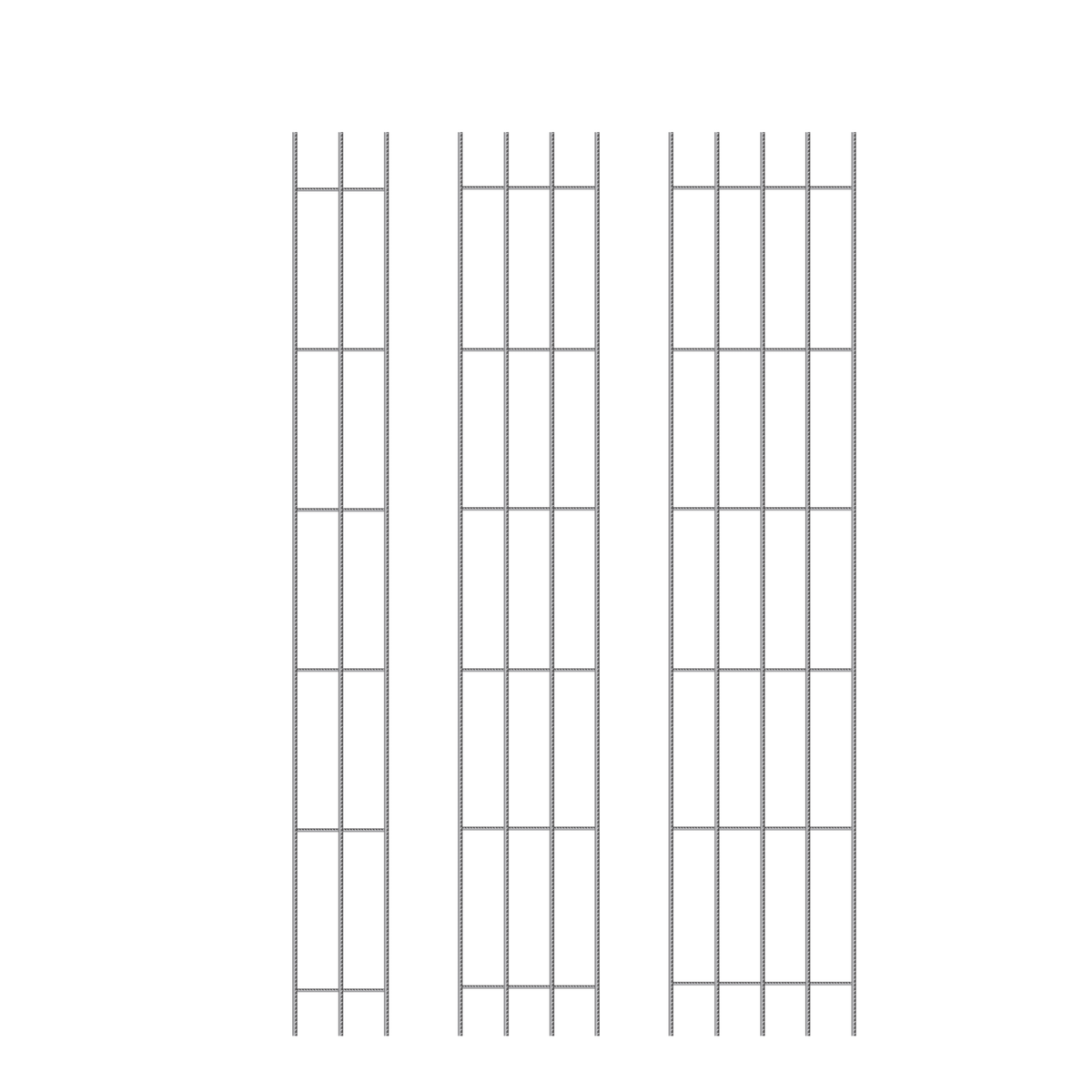

Reinforcement trench mesh is made from grade D500L ribbed wires commonly sold in 6m lengths. Trench mesh reinforcing sheet is a Class L and N reinforcing mesh typically used in domestic, industrial and commercial buildings to reinforce concrete footings and beams.
Trench mesh is supplied in sheet sizes 6m long and range from 0.2m to 0.5m in width with wire diameters in 8mm, 11mm, 12mm and 16mm wires.
Typical Uses:
- Residential footing trenches
- Industrial footing trenches
- Commercial footing trenches
- Concrete beam reinforcement
Features:
- Grade D500L ribbed wires for superior bonding
- Class L and N reinforcing mesh
- Available in variety of sheet sizes and wire diameters
- 6m standard length for efficient coverage
- Suitable for domestic, industrial and commercial applications
Specifications:
- Grade: D500L
- Class: L and N reinforcing mesh
- Length: 6m (standard)
- Width range: 0.2m to 0.5m
- Wire diameters: 8mm, 11mm, 12mm, 16mm
Associated Standards:
- AS/NZS 4671:2019 Steel for the reinforcement of concrete
- AS 3600:2018 Concrete structures
- AS 3727:2016 Guide to residential pavements
- AS 2870:2011 Residential slabs and footings
